Linear Technology Technical design principles
The product families remain visible, but not as a rigid sales catalogue. They show how S+R typically solves force line, space, protection class and control, then derives the custom actuator from the project.

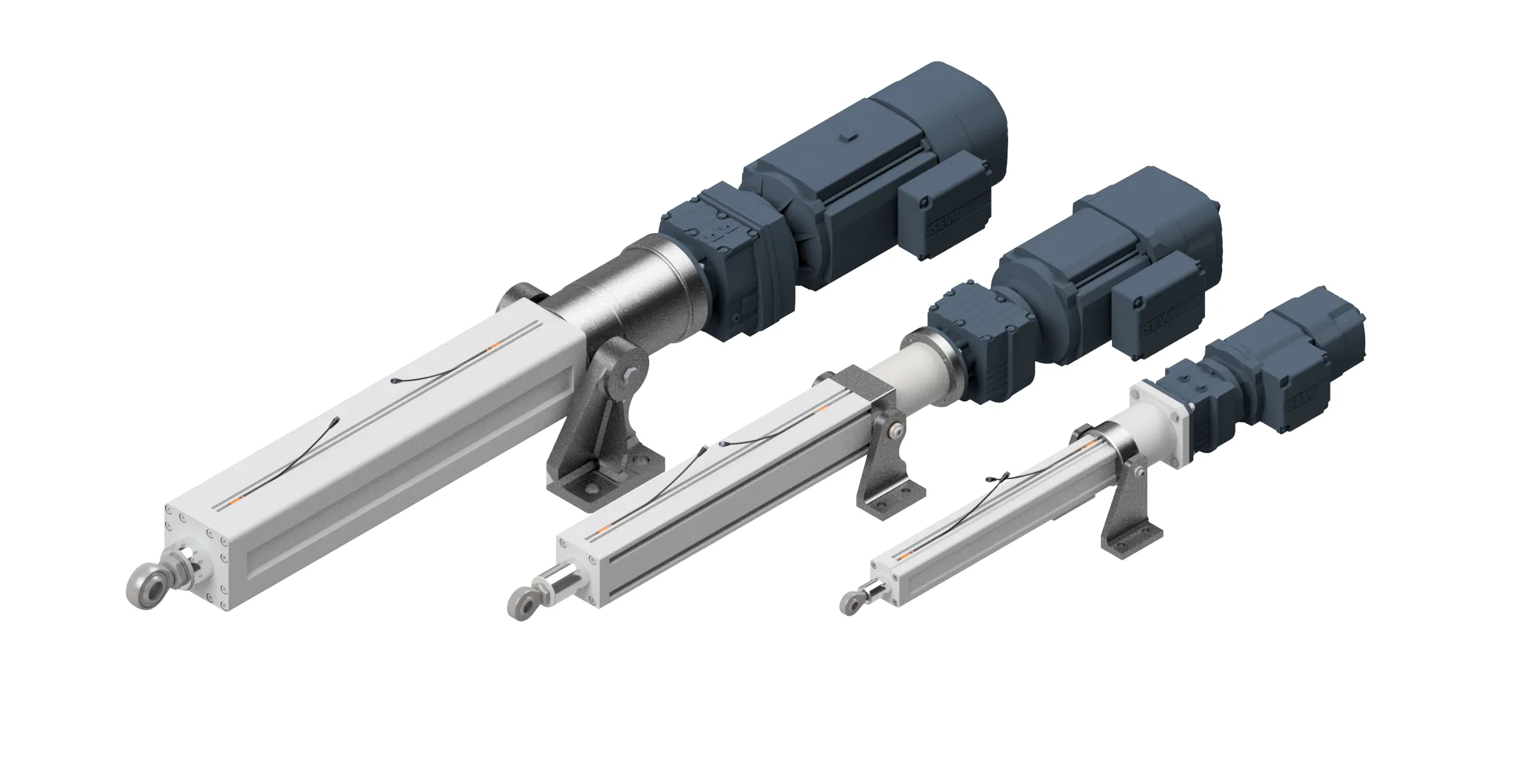

Product ranges
Each family can be adapted with motor, spindle, sensors, protection class, mounting and control to fit the load case. The selection starts the project clarification; it does not end it.
Axially guided thrust for high loads and clear installation conditions.
Axial motor arrangement for maximum force density
rough industrial environments, outdoor use, high forces, positioning and synchronous motion tasks
Compact thrust when machine space is limited.
Parallel or angular drive arrangement for short installed lengths
machine modules with limited axial space and demanding integration requirements
Closed design for dynamics, dirt and hard-to-access equipment.
Timing belt or chain drive for demanding conditions
dirt, outdoor use, high dynamics and hard-to-access installation positions
Selection logic
A qualified inquiry usually needs a few hard parameters: force, stroke, speed, duty cycle, installation position, environment, voltage, control and an existing drawing.
| Load case | Series | Design principle |
|---|---|---|
| Plenty of axial space | AP | Direct motor arrangement, clear force line and high force density. |
| Short installed length | SP | Parallel or angular drive arrangement when machine space is limited. |
| Rough, dynamic, hard to access | XP | Closed design with belt or chain drive. |
