Linear Technology Force line
Axial, parallel, angular or protected: the design follows force, installation space and access.
Technology building blocks
Standard principles are the starting point, not the destination.
AP, SP and XP show how S+R typically builds force line, space, protection, sensors and control. From there, the right solution is developed for the project.
Design logic
Four decisions shape the motion solution.
The best solution is rarely simply the strongest or fastest one. It fits the load case technically, the project commercially and the machine practically.
Screw & drive
Ball screw, trapezoidal screw, timing belt, chain, gearbox and motor are combined around the load case.
Interface
Mounting, piston rod, bearing, protection class and sensors are derived from drawing and environment.
Serviceability
Repair, spare parts and retrofit are considered so the solution remains traceable in operation.

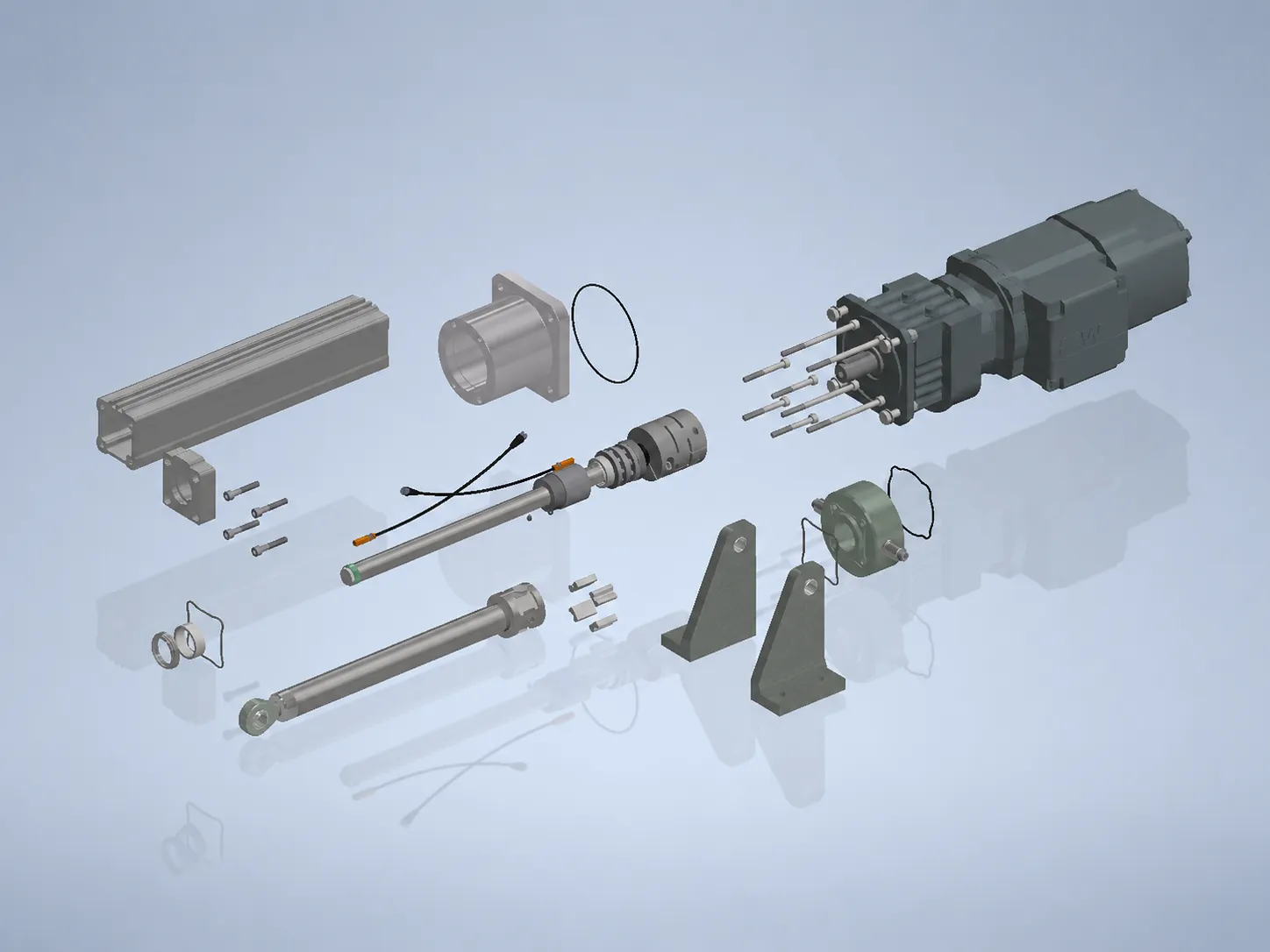

Component quality
Component quality inside the building block.
S+R does not only define the actuator layout. The core components are selected around the project as well. Screw, drive, brake, sensors and interface need to fit the load case so the assembly remains technically robust, testable and serviceable later.
Screws, guides and linear assemblies are selected around force, stroke, accuracy and service access.
- NEFF Gewindetriebe
- RK Rose+Krieger
Motor, gearbox and ratio need to match the motion, duty cycle, voltage and control environment.
- SEW-Eurodrive
- Motovario
Couplings, brakes and safety components support interfaces, holding functions and traceable sizing.
- R+W Antriebselemente
- Stromag
End positions, position feedback, monitoring and signals are integrated to fit the machine and its control system.
- SICK
- ifm
The manufacturer logos show examples of components used on a project-specific basis. They do not imply general approval, exclusivity or an official partnership; the selection depends on technical suitability in the specific project.
Design principles
Three product families as technical tools.

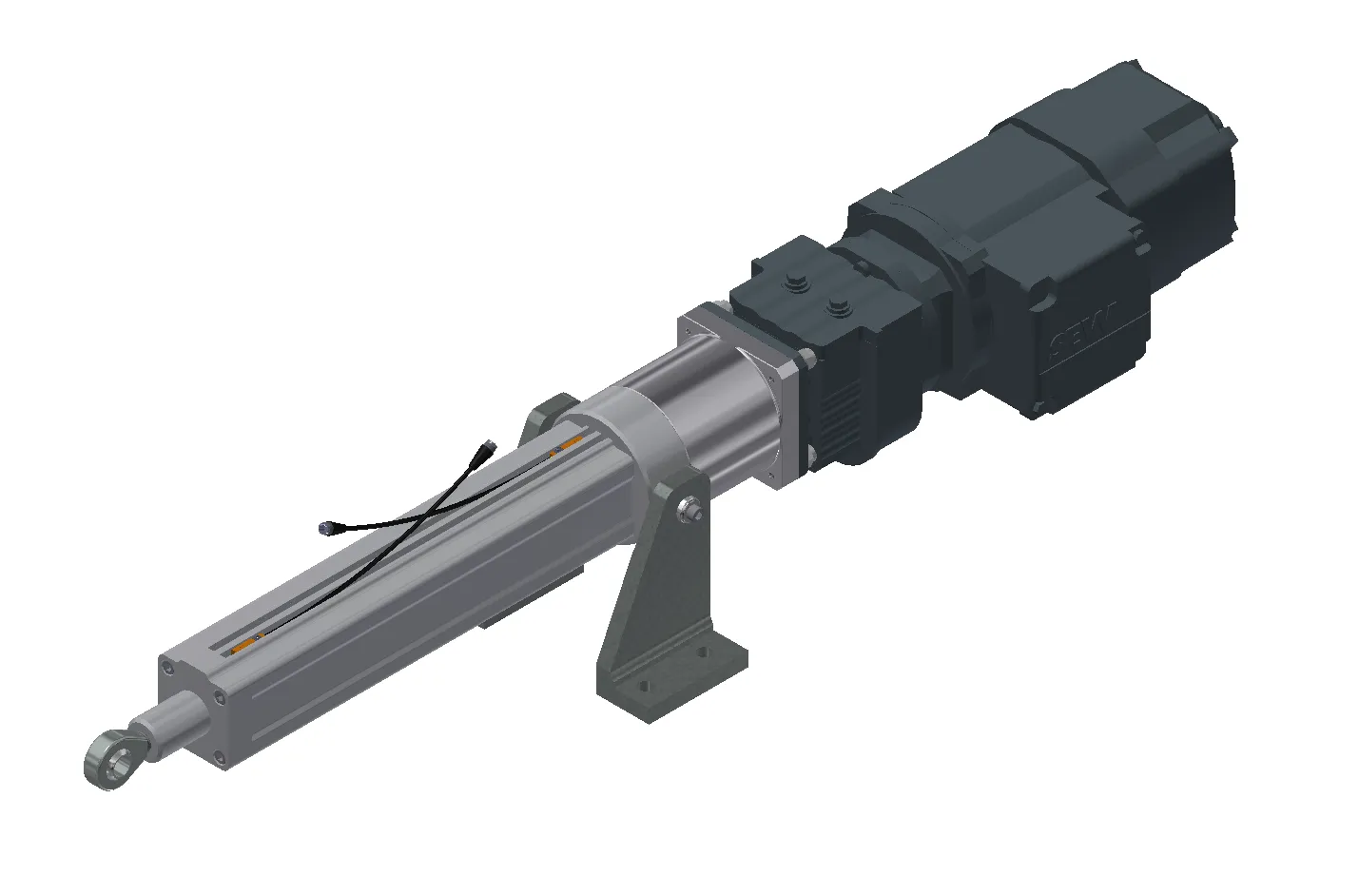

AP
AP series
Axially guided thrust for high loads and clear installation conditions.
- Force
- up to 500 kN
- Stroke
- up to 3,000 mm
- Protection
- IP65+
rough industrial environments, outdoor use, high forces, positioning and synchronous motion tasks

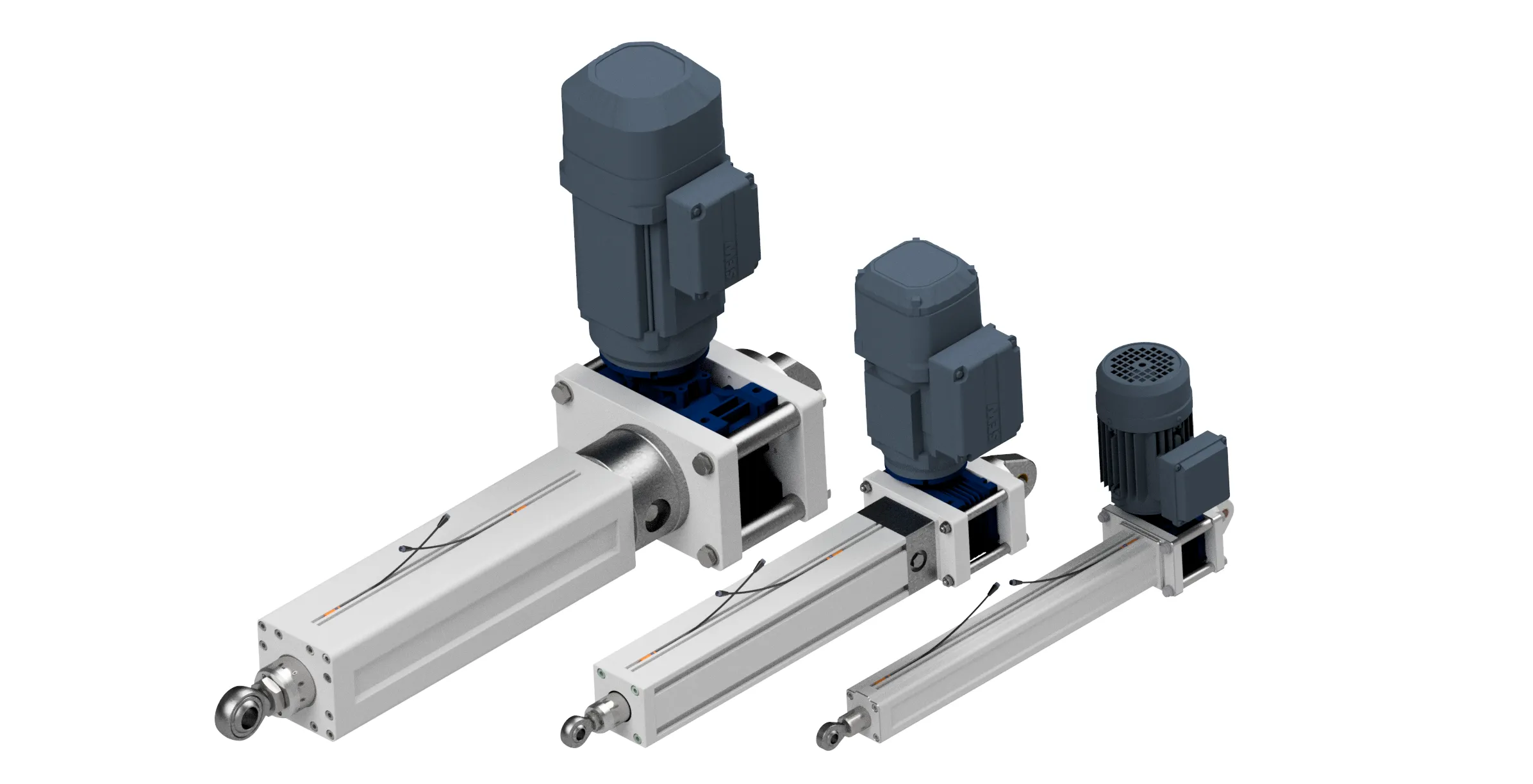

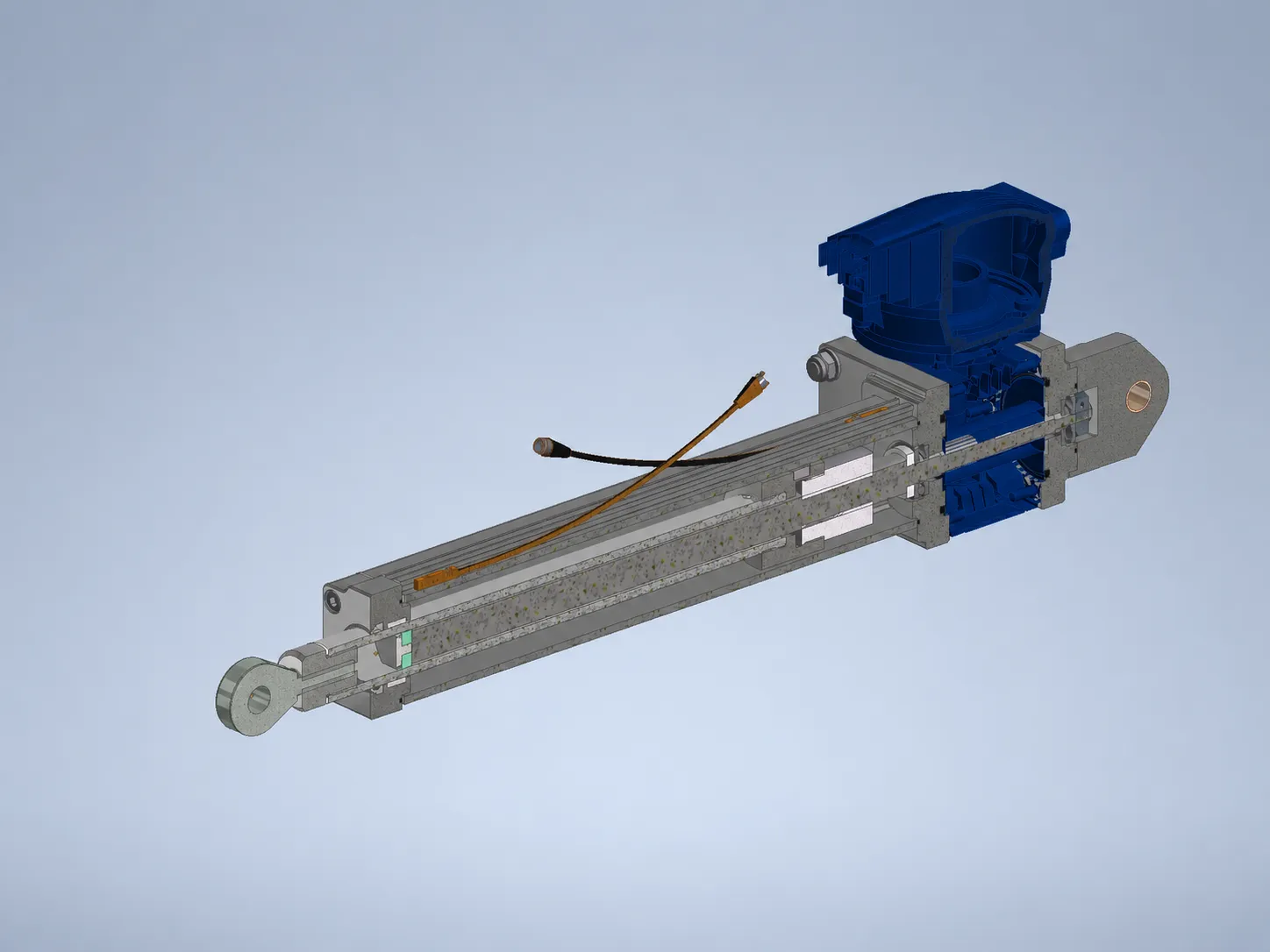

SP
SP series
Compact thrust when machine space is limited.
- Force
- up to 500 kN
- Stroke
- up to 3,000 mm
- Protection
- IP65+
machine modules with limited axial space and demanding integration requirements

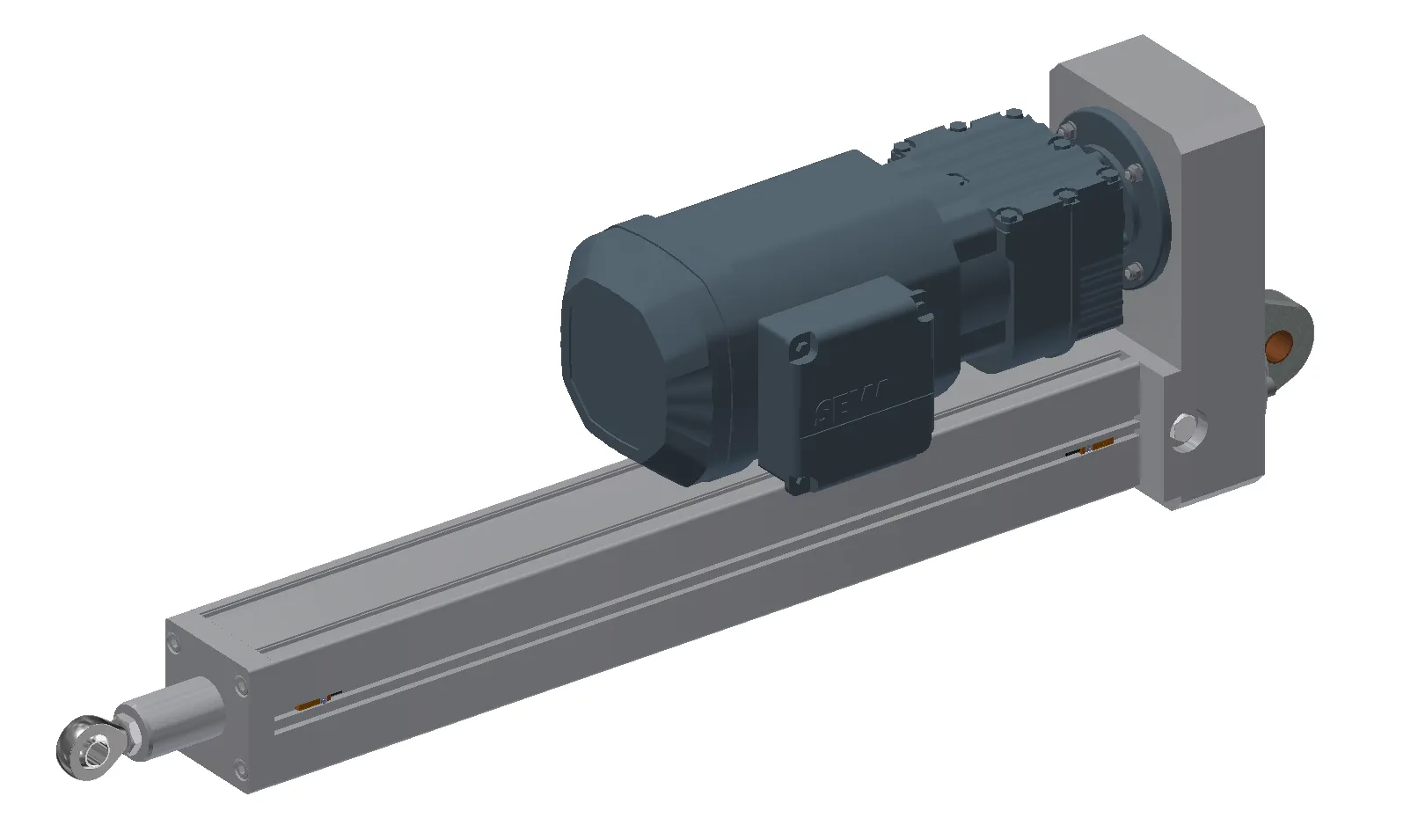

XP
XP series
Closed design for dynamics, dirt and hard-to-access equipment.
- Force
- up to 500 kN
- Stroke
- up to 3,000 mm
- Protection
- IP65+
dirt, outdoor use, high dynamics and hard-to-access installation positions
Motors & motion control
Platform-open: classic three-phase – or servo for motion control.
We build the actuator. You choose the motor that drives it – from a robust three-phase motor to a servo drive for demanding motion control.
Classic: three-phase motor
Robust, economical standard solution for reliable lifting and positioning motion – proven and long-lasting.
Motion control: servo – platform-open
For precise, dynamic and networked motion we equip the actuator with all common servo motors – e.g. SEW, Beckhoff (EtherCAT), Fanuc, Siemens (PROFINET, SIMOTION) – exactly as it fits your control environment.
Customer-supplied servo motors are possible: you provide the preferred motor, we integrate it into the actuator.
Supported servo & control platforms (selection)
From building block to custom solution
The building block reduces risk without forcing the project into a standard.
Proven assemblies help with sizing, manufacturing and service. Motor position, screw, housing, mounting, sensors and documentation remain as open as the application requires.
